Introduction to Elbows in Spiral Duct Systems

In the design and implementation of HVAC systems, using only straight ducts is not sufficient. The airflow path in many projects requires a change of direction, and this is where the spiral duct elbow comes into play as one of the most vital fittings. Elbows are responsible for changing the path of airflow without causing serious disruption to pressure, velocity, and flow quality.
In spiral duct systems, elbows are designed to be compatible with the spiral structure of the duct and create the least resistance to the passage of air.

Applications of Spiral Duct Elbows

Elbows are used in various parts of the ventilation system, including:

• Changing duct direction in suspended ceilings
• Passing ducts through architectural obstacles
• Connecting main lines to sub-branches
• Guiding air to different spaces with minimal pressure drop

In large industrial projects or multi-story buildings, the correct use of the appropriate elbow can have a direct impact on the efficiency of the entire system.

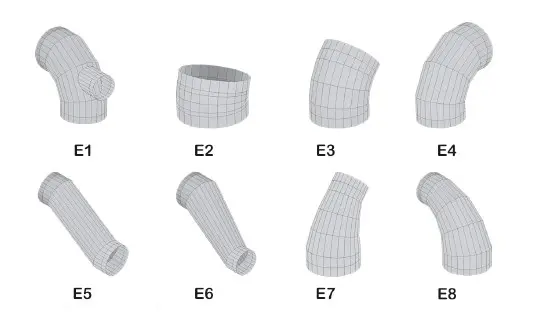

Types of Spiral Duct Elbows

Spiral duct elbows are usually manufactured in various angles, including:

• 30-degree elbow
• 45-degree elbow
• 60-degree elbow
• 90-degree elbow

The gentler the elbow angle, the lower the pressure drop and noise generation. Therefore, in professional designs, the use of segmented elbows or those with smaller angles is preferred.

Advantages of Using Standard Spiral Elbows

Using standard and high-quality elbows in the spiral duct system offers numerous benefits:

• Reduced air pressure drop
• Maintenance of flow uniformity
• Reduced noise caused by air movement
• Increased lifespan of the ventilation system
• Complete compatibility with spiral ducts
• Fast and easy installation

High-precision manufactured elbows prevent air leakage at the connection point, which is very effective in reducing energy consumption.

Material and Composition of Spiral Duct Elbows

Spiral duct elbows are usually made from the following materials:

• Galvanized steel sheet (the most common option)
• Stainless steel sheet
• Aluminum sheet (in special projects)

Galvanized sheet is the first choice for many construction and industrial projects due to its high resistance to corrosion, suitable price, and long durability.

Impact of Elbows on Ventilation System Efficiency

Incorrect selection of an elbow can cause:

• Increased pressure drop
• Reduced air flow rate
• Increased fan energy consumption
• Creation of annoying noise in the system

Conversely, a standard spiral elbow with an appropriate radius guides the airflow smoothly and in a controlled manner, optimizing the overall performance of the system.

Important Considerations in Choosing a Spiral Duct Elbow

To choose the correct elbow, attention must be paid to the following:

• Spiral duct diameter
• Required angle
• Installation space
• Project usage type (residential, commercial, industrial)
• Compliance with manufacturing standards
• Quality of seams and connections

Specialized consultation at this stage can prevent additional costs and subsequent corrections.

Spiral Duct Elbows in Different Projects

Spiral elbows are used in a wide range of projects:

• Residential buildings
• Commercial and office complexes
• Hospitals and medical centers
• Factories and industrial sheds
• Shopping centers and large halls

In each of these projects, the correct choice of elbow type has a direct impact on air ventilation quality.

Conclusion

The spiral duct elbow is one of the key components of an HVAC system, playing an important role in correctly guiding flow, reducing pressure drop, and increasing system efficiency. Using standard and high-quality elbows not only improves system performance but also reduces maintenance costs and energy consumption in the long run. At Kian Fan Group, various types of spiral duct elbows are offered with high quality and in accordance with modern standards to meet the needs of different projects.
