Introduction and Technical Structure

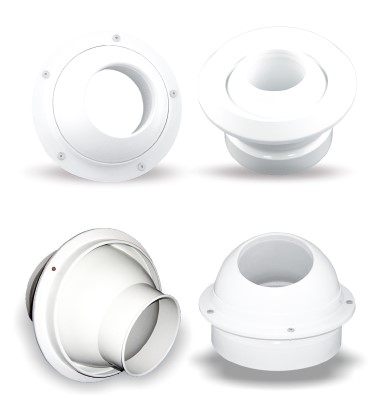

In vast spaces with high ceilings, one of the main challenges of ventilation systems is delivering conditioned air from the ceiling level to the occupancy zone (residents' environment) without loss of temperature and speed. Kian Fan Industrial Production Group has provided an efficient and engineering solution to this problem by offering round diffusers. The structure of these diffusers includes a horn-shaped air distributor placed inside a spherical piece. This innovative design allows the distributor to rotate around its axis in any direction up to 30 degrees.
The body of these diffusers is made of high-quality aluminum, which provides high resistance to corrosion and abrasion while being lightweight. The precise aerodynamic design of this product ensures that airflow exits with minimum pressure drop and noise. The relatively small outlet cross-section of these diffusers creates high velocity in the airflow, which enables long throw air projection.

Key Features and Advantages

The most important feature of Kian Fan's round diffusers is increasing the speed and length of the airflow throw. This feature ensures that conditioned air reaches the target area directly and does not mix with ambient air in the intermediate phases, preventing energy waste. The ability to adjust airflow in any desired path with a maximum deflection angle of 30 degrees in any direction allows users to precisely set the air distribution pattern based on space needs and different seasons. For example, in summer, cool air can be directed downwards, and in winter, warm air can be directed towards the ceiling to utilize ceiling heating ventilation.
Using these diffusers reduces the number and length of duct branches, as the high throw capability eliminates the need for multiple outlet points. This significantly helps reduce project execution costs and eliminate facility interference in the suspended ceiling. The appropriate aerodynamic design not only creates uniform flow but also minimizes acoustic noise and balances ductwork system pressure. The beautiful and modern appearance of these diffusers also has a positive impact on harmony with the interior architecture of spaces.

Flexible Layout and Installation

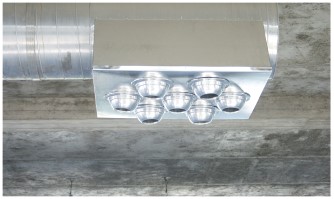

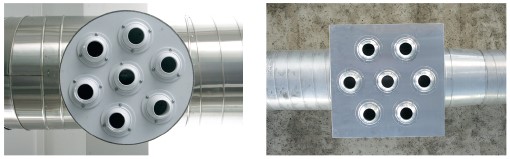

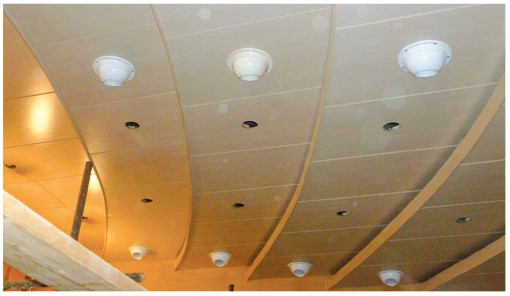

One of the great advantages of round diffusers is flexibility in layout and installation. These diffusers can be installed individually or in groups on round or rectangular ducts. In suspended ceilings, these diffusers easily replace ordinary diffusers and create a neat appearance. It is also possible to install them at the outlet of tees, crosses, and other branches, which does not limit design engineers in designing ventilation systems. Installation as ceiling, wall, or any other suitable position, especially in vast spaces, is easily possible.

Specialized Applications

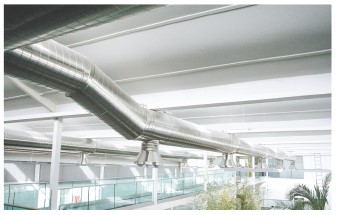

Kian Fan's round diffusers are designed for a wide range of large and industrial spaces. In large chain store halls with high ceilings, these diffusers deliver conditioned air directly to aisles and shelves. In factories and production sheds, these diffusers are used for effective ventilation and controlling the work environment temperature.
In sports halls, halls, and exhibition centers where proper air distribution with ordinary ceiling diffusers is difficult due to great height, round diffusers are an ideal choice. This product is also used in airports, train stations, and any large public space with high ceilings.

Conclusion

The round diffusers of Kian Fan Industrial Production Group, combining precise engineering design, high-throw performance, and installation flexibility, have established a new standard in ventilating vast spaces. Choosing this product guarantees thermal and cooling comfort for residents, along with reduced execution costs and improved architectural aesthetics of the space.
